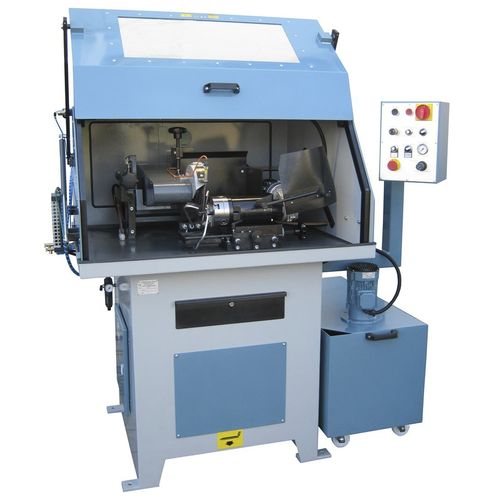

Cutting milling machineTR 3-30

The milling cutter or round bars are positioned with the aid of a laser line and then clamped manually with a 3-jaw chuck.
infinitely variable speed control of the grinding wheel and the work piece.
The automatic process is started only when the hood is closed.
Remainder piece are automatically collected in a tub.

Clamping range – 3mm-30mm,
Max.Length – 200mm
Grinding wheel : – 200 mm
Cooling tank – 185 Liter –
Air consumption : – ca.40L/min,
Working pressure : – 6 Bar
Drive the spindle : – Poly-V belt,
Drive workpiece : – on gearmotor
power connection: 230/ 400 V, 50 Hz Total Power: 4,8 kW control: Hydropneumatik Weight: TR 3-30 = 542 kg Coolant content: 63 Liter

Number of axes : 3-axis
Spindle orientation : horizontal
Associated function : cutting, grinding
Other characteristics : automatic, variable speed, for bar machining
Power : 5 kW (7 hp)
