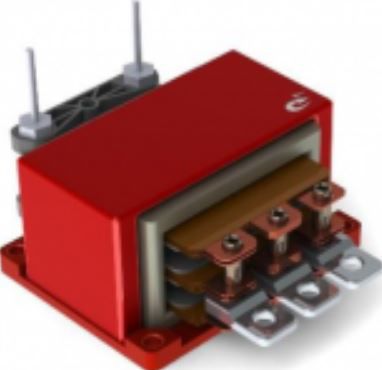

Current transformerDCDC414-002

Features
•ZVS Phase-Shift Full-bridge 3kW transformer
•Work with ZVS inductor 14µH / 14Apk
•Recommended output inductor 1µH / 180Adc
•Switching frequency 100kHz
•UL94 and RoHS materials (F/155°C)
•Design based on AEC-Q200
•Weight : approx 350grams

Application
•Automotive HV/LV DCDC onboard converters
Operation
•Vin = 420-850Vdc / Vout = 14Vdc
•Operating temperature -40/+125°C with coolin

Type : current
Configuration : cast resin
Applications : for DC/DC converters, for automotive applications
Other characteristics : frequency
Primary current : 5 mA
Electric power : 3,000 W
Primary voltage : Min.:
Secondary voltage : 14 V
