This device (Fig. 1) is properly designed for a remote
control of fan-coils.

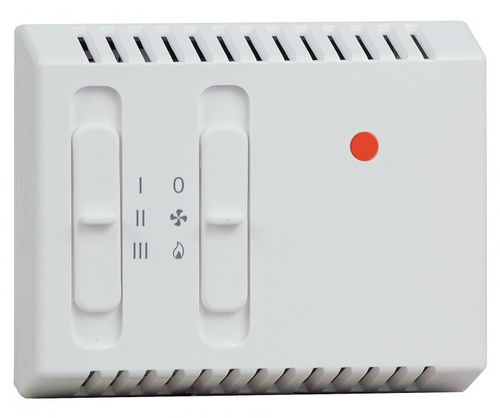

The controls available on the front cover of the
thermostat for the user are two sliders:

3 speed selection
Through this three-position slide selector, (A in Fig. 1), the user can choose the (fixed) speed of the fan-coil motor.

off/cooling/heating selector
Through this three-position slide selector, (B in Fig. 1), the user can choose the operating mode of the thermostat as in the following explained:
– off mode: Set the slider to the position with the
symbol : the thermostat is turned off.
– cooling mode: Set the slider to the position with the symbol [: cooling mode is then selected.
– heating mode: Set the slider to the position with the symbol I: the heating mode is then selected and controlled by the cutoff thermostat (TM).

The green led (C of Fig. 1) turned on indicates the fan-coil motor activity

TECHNICAL FEATURES

Alimentazione 230V~ -15/+10% 50Hz
Contact rating 5A @ 250V~
Slide switch 3 speeds
Slide switch Heating/off/cooling
Protection grade IP30
Dimensions H80 W79 D37mm

Type : corded
Control interface : with buttons
Product applications : for fan coil units
