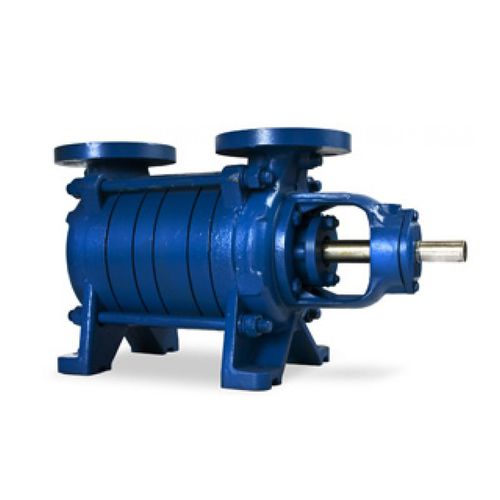

Horizontal Multistage, Surface Pumps
EOH are Horizontal Multistage Vane pump. Self Priming in construction and suitable to handle 2 phase fluid with up to 20% gas mixture.
This pump are used for clean fluid with small flow and high head, where normal centrifugal pumps will fail. The in-between bearing enable the pump to withstand high pressure, low noise and suitable for low NPSHa.
Details
FlangeDIN 2512 (std), ANSI B16.5B (optional)
Materials Cast Iron, Ductile Iron, Bronze, Stainless Steel
MountingBare Shaft, Direct Coupled with Electric Motor or Engine, Monobloc
Specifications
DN32 – 80
Q0.3 to 30m³/h
O.P10 bar
H310m
Ns2900rpm- 50Hz, 3550rpm- 60hz
tup to 110ºC
Applications
Boiler Feed Pump
Condensate Pump
Booster Pump
Jocky Pump
Chemical Spraying or Coating
Petro-Chemical Industry
OEM for Machinery
Fluid : condensate
Operation : with electric motor
Priming : self-priming
Technology : vane
Domain : industrial, chemical, for the petrochemical industry
Applications : spraying, booster, boiler, feed
Material : cast iron, bronze
Other characteristics : horizontal mount, multi-stage, OEM
Flow : Min.:
Pressure : 10 bar (145.038 psi)
Head : 310 m (1017’00”)
