Connect common strain gage-based load cells, force sensors, and torque sensors to Mark-10 indicators with this user-configurable adapter and software.

Sensor capacity and resolutions may be programmed via an included software utility, which includes a library of common force capacities from 0.12 to 750,000 lbF (0.5 N to 4,000 kN), and torque capacities from 10 ozFin to 40,000 lbFft (7 Ncm to 57,000 Nm). An identification number may be programmed, which is displayed upon indicator power-up or the indicator’s Information screen.

Through Plug & Test™ technology, all configuration and calibration information is saved within the adapter. This flexibility allows for interchangeability between multiple sensors with Mark-10 indicators.

Features and specifications
•Compatible with strain gage-based load cells, force sensors, and torque sensors

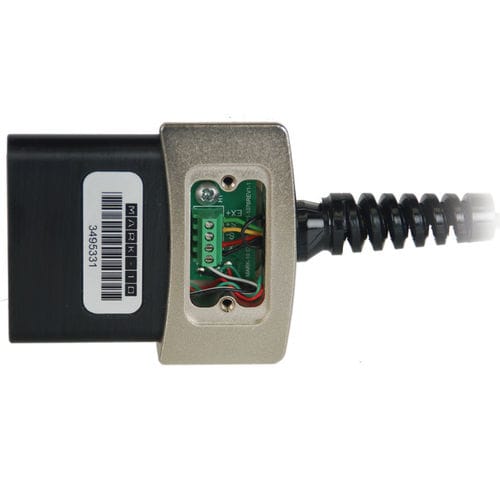

•Screw terminal block allows for easy connection of sensor wires
•Software configuration utility is included, for easy programming of sensor capacity, resolution, and identification number
•Program the adapter via USB or RS-232 through the indicator

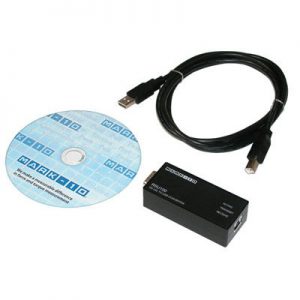

•Supplied with a strain relief, user-writeable identification label, and Resource CD with software

Sensor Requirements:
•Type: Full bridge
•Resistance: 300 – 1000 ohms
•Sensitivity: 1-3 mV/V

Indicator Requirements:
•Mark-10 indicator with firmware version 1.0.9 or later*

* The PTA adapter cannot be configured using older indicator versions.
The PTA adapter can be used with older indicator versions, however, the adapter cannot be calibrated for single-direction load cells, such as load button and thru hole type load cells.

Type : communication
Applications : interface
Connector type : USB
Other characteristics : RS-232
