3/H Series

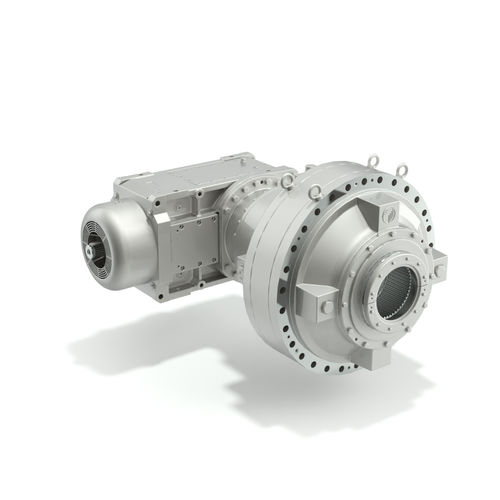

Combined Planetary/Helical Bevel Heavy Duty Gear Units
The Bonfiglioli 3/H Series combines the high torque density of planetary gear units with the robustness and high-speed operation of the helical bevel heavy-duty products. This configuration can provide great power transmission in a very compact space, thanks to its angular layout. The 3/H Series can also come with a set of features such as hydraulic couplings or cooling circuits, adapted according to customers’ needs
Key benefits
– Extremely high transmissible torque and power
Suitable for all heavy-duty applications
– High shock resistance
– Reliability
– Easy maintenance
– High customization level
Main options
Auxiliary thermal devices
Forced Lubrication
Backstop devices
Torque arm
Base plates
Fluid couplings
Shoe brakes

Furthermore, special, complete and custom Power pack solutions are available as per customer needs.
Torque range
135,000 …1,750,000 Nm
Gear ratios
89.1… 1,070
Certifications
Certificate of compliance
Inspection certificate
Output
Solid cylindrical shaft
Solid shaft with keyway
Solid shaft with supporting feet
Solid shaft with keyway and supporting feet
Hollow shaft with shrink disc
Hollow shaft with keyway
Motors
Input with solid shaft
Input with e-motor coupling:
– M, ME, MX [compact asynchronous]
– BN, BE, BX [IEC asynchronous]
– BSR [IEC reluctance]
– BS [IEC single phase]
Motor options
Thermistors and thermostat sensors
Independent forced cooling
Incremental, sin/cos absolute single/multi-turn encoders
Tropicalization
Anti-condensation heaters
Backstop

Type : planetary, bevel, helical
Shaft orientation : parallel-shaft, right angle
Torque : > 10 kNm
Performance : for heavy loads
Applications : transmission
Other characteristics : compact, rugged, combined
Power : 980 kW (1,332.43 hp)
