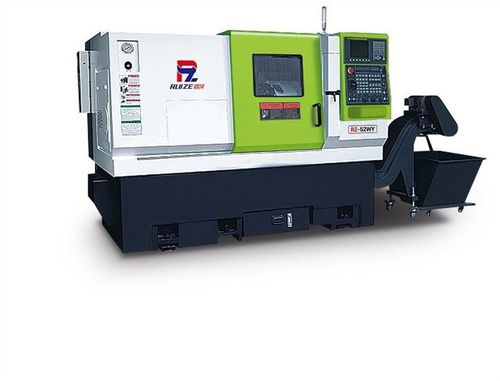

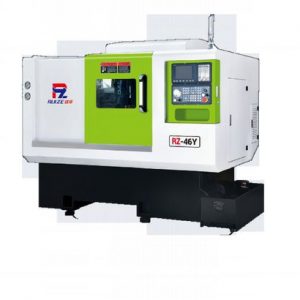

CNC Turning Center
This series lathe machine is an economical ,practical type machine tools with good quality , they are suitable for kinds of turning
This series lathe machine is an economical ,practical type machine tools with good quality , they are suitable for kinds of turning, such as internal and external cylindrical surface turning, cutting of various metric, whitworth, module and diameteral pitch threads as well as taper turning, facing, drilling, reaming and broaching for oil grooves and keyways etc. The workpiece produced on machine can achieve good accuracy and surface roughness Ra1.6um.
Control type : CNC
Number of axes : 3-axis
Applications : drilling
Other characteristics : cutting
Diameter : 46 mm (1.81 in)
Spindle speed : 4,500 rpm (28,274.334 rad.min-1)
Maximum cutting diameter : 66 mm (3 in)
Maximum cutting length : 300 mm (12 in)
Axe X : 500 mm (20 in)
Axe Z : 390 mm (15 in)
Spindle power : 8 kW, 11 kW (11 hp)
Overall width : 1,900 mm (75 in)
Overall height : 1,800 mm (71 in)
Weight : 3,000 kg (6,614 lb)
