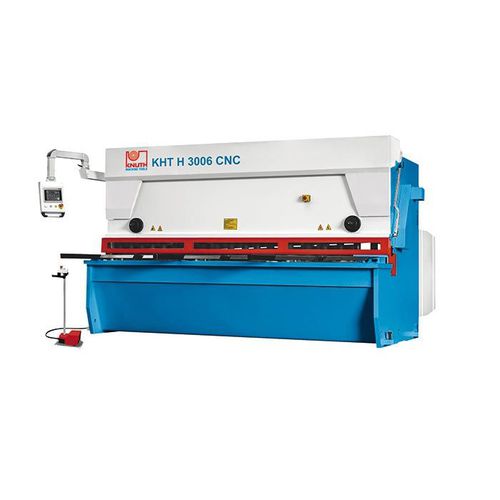

CNC plate shears with material-dependent gap/angle/pressure calculation
Details
These guided hydraulic plate shears with CNC-controlled back gauge, kerf and cutting angle combine high quality and reliability with a user-friendly design
Machine Frame
• – The very rigid and heavy machine frame has been welded to tight tolerances and annealed
• – The machine frame has been machined on a state-of-the-art 5-axis milling machine in one single setup to ensure more precise cuts and extended life
• – All components subject to tensile loads have been carefully constructed and designed with large radii to permanently eliminate the risk of cracking
• – The table features a bottom cutter mount and cutter bar and has been designed for minimal torsion and optimum load distribution
• – All components were treated in a modern paint and drying system and feature two coats of paint, each coat with a minimum thickness of 60 micron
Material Support
• – The large work table features roller balls and a rigid lateral angular stop for easy handling and safe plate alignment
• – Long, sturdy support arms safely hold large plates
Hydraulics
• – Polished pistons on both hydraulic cylinders feature superior 2 micron surface grades, ensuring a long seal life
• – Cylinder bodies are forged from high-strength SAE 1040 material
• – The entire hydraulic system is reliable, low-maintenance and easy to service
• – During the cut, hydraulically regulated hold-downs ensure steady fixation of the sheet metal plate close to the cut-line
Operation : hydraulic
Application : for sheet metal
Type : swing-beam
Other characteristics : CNC, motorized, automatic
Plate thickness : 6 mm, 10 mm, 13 mm, 16 mm (0 in)
Working length : 3,080 mm, 4,080 mm, 6,100 mm (121.26 in)
