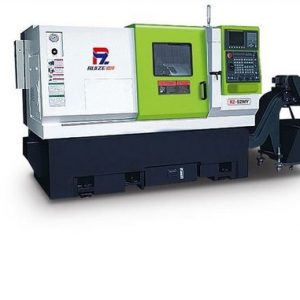

CNC latheLM-06Y

45 Degree Slant Bed CNC Lathe
■ Adopt 45°integral slant bed design
■ Z axes adopt 35mm width ROLLER type linear guideway,super high rigidity
Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/TAIWAN brand

■ Adopt 45°integral slant bed design

■ Z axes adopt 35mm width ROLLER type linear guideway,super high rigidity

■ Adopt modularization design, easy for various especial configuration choice, such as tool setter, parts catcher etc

■ Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability

■Base adopt multilayer strengthening rib, ensure bed’s strength and stability

■ Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,

high speed,wide adjustment range

■ Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity

■ H40T mount 8T hydraulic tool turret

■ H40TC mount C axes and 12T BMT type Powered tool turret

■ H40TY mount C axes and 12T BMT type Powered tool turret with 90°Y axes

Control type : CNC
Number of axes : 3-axis
Diameter : 46 mm (1.81 in)
Spindle speed : 4,500 rpm (28,274.334 rad.min-1)
Maximum cutting diameter : 66 mm (3 in)
Maximum cutting length : 300 mm (12 in)
Axe X : 500 mm (20 in)
Axe Z : 390 mm (15 in)
Overall width : 1,900 mm (75 in)
Overall height : 1,800 mm (71 in)
Weight : 3,000 kg (6,614 lb)
