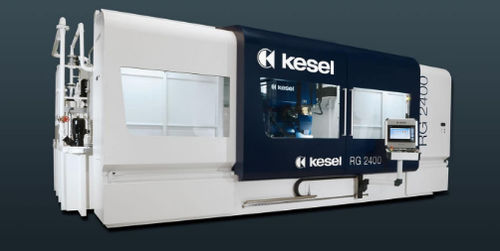

The new Kesel RG 2400 grinding machine completes the Kesel product range for industrial rack production. With its highly innovative design built for quality and high volume productivity this machine is the perfect tool for any rack producer. Various features and options like pendulum grinding with two machine tables, automated centring of the milled racks, an intelligent coolant management, continuous dressing and automated balancing, measuring of the ground racks on the machine and other features contribute to the success of the Kesel RG 2400 customers. Equipped with a state of the art Siemens SINUMERIK 840D sl control the RG 2400 uses Siemens servo drive units as well.
Travel range
X-axis (horizontal, table-axis)2.600 mm
Y-axis (vertical, depth)380 mm
Z-axis (horizontal, infeed)548 mm
B-axis (swivel axis helical tooth profile)+/- 25 °
Clamping range565 x 2,400 mm
Travel range – Dressing unit
X2-axis140 mm
Y2-axis143 mm
Y3-axis155 mm
Grinding head
TypeS500
Power93 kW S1
Wheel mountØ 165 mm
Grinding disk diameter min.220 mm
Grinding disk diameter max.500 mm
Grinding disk width max.127 mm
Control type : CNC, automated
Other characteristics : precision, continuous, vertical, horizontal
X travel : 2,600 mm (102 in)
Y travel : 380 mm (15 in)
