Applicable industry:

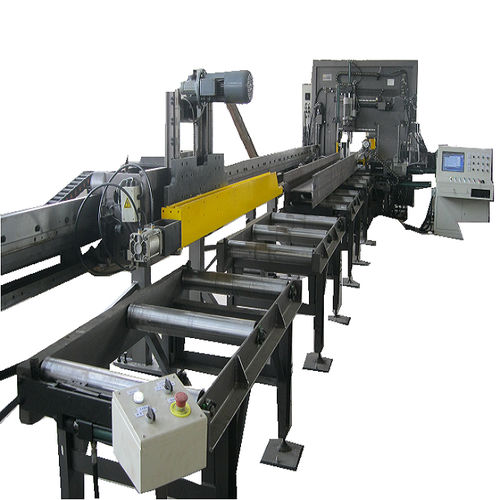

Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform.
Product feature:
1.Equipped with three drilling head, the drilling procedure finished after the work piece going through the equipment.
2. Three drilling head can drill holes simultaneously, and adopt self-controlled stroke drilling head.
3. No need to set thickness of work piece and length of drilling, automatically finish the transfer of rapid feeding and work feeding, and with high efficiency.
4. CNC & PLC systems, LCD display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
5. Programming Microsoft is not depend on CPU equipment, can be installed in any computer to carry out programming off-site, direct copy or network transmission to the equipment to realize.
6. Each drilling head, equipped with professional main shaft speed-reducing-motor from famous products abroad.
7. Main machine, hydraulic pressure, electric components are famous products domestic and abroad.
Product Basic Parameter:
H-beams Max. (web height × flange width) (mm) – 700×400
Min. length of workpiece (mm) – 1800
Max. weight of workpiece (kg) – 5000
Drilling dia. (mm) – Φ12.5~Φ30
Drilling head feeding speed(mm/min) – 20~300
No. of spindle – One spindle on each of three sides (top,left,right) Total: 3 spindles
Rotation speed (stepless speed adjustment)(rpm) – 180~560
Feeding movement speed (mm/min) – 20~300
Max. feeding stroke (mm) – 300
Power of each spindle (kW) – 4
Type : CNC
Applications : for H profiles, for steel
Other characteristics : electric, beam
Drilling diameter : Max.:
