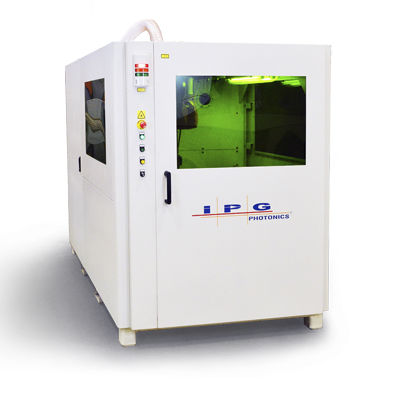

The Laser Drilling Workcell provides automated drilling of complex-profile industrial parts. Featuring a QCW high-pulse energy laser that provides high coupling efficiency with a wide range of metals, including highly reflective materials, the system includes a 6-axes robot system and laser processing head packaged within a Class 1 laser safe enclosure.
To maximize utilization of the fiber laser source, the Drilling workcell can support cutting or welding with optional automated switching between functions.
Due to the modular design of the Drilling Robotic Workcells, a wide choice of laser powers and system options, IPG offers custom configurations optimized for specific applications.
Features
Choice of QCW lasers up to 2300/23000 W
Processing head with height sensor for percussion drilling or hole trepanning
Laser Work Volume 760 × 760 × 760 mm
6 axes Robot – 2 m (79 ins) reach
Class 1 fully interlocked safety enclosure
Optional 2 axes positioner for coordinated part motion
Hole Position Repeatability Typ. < 0.06 mm
Drilling process and automation designed and supported by IPG
Specifications are typical capabilities; please contact IPG for a turnkey configuration optimized for specific applications.
Type : CNC
Other characteristics : laser, 6-axis
