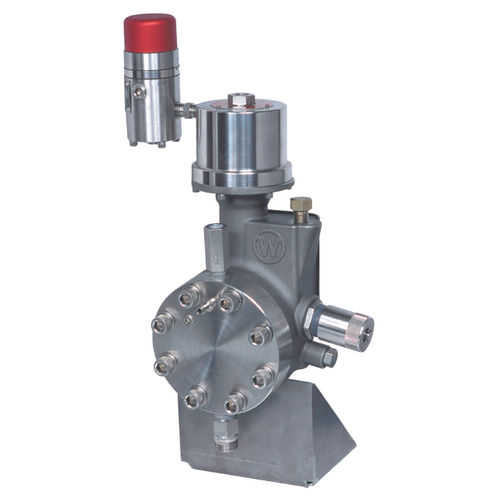

WILROY Series Hydraulic Diaphragm Pump
The WILROY metering pump is a unique blend of Williams and Milton Roy pump technology
The WILROY is a pneumatic-hydraulically actuated diaphragm pump designed for high pressure chemical injection used in applications where the media needs to be isolated by a TFE diaphragm. Can be used for a variety of high-pressure process applications.
Gylon® diaphragm offers a wide range of compatibility
Cartridge Design Approach
Displacement is adjusted by a Hydraulic Bypass Design
Pressure capabilities to 3000 PSI (207 BARG)
Flow rates from 0.035 gal/hr (0.1325 liters/hr) to 7.8 gal/hr (29.5 liters/hr)
Five sizes in two housing makes it field reconfigurable
Pneumatic controller, piston plunger and housing, and relay common with V-Series
Maintenance Free Sealed Hydraulic system
Double Diaphragm Leak-Detection Options
Fluid : for chemicals
Operation : pneumatic
Technology : diaphragm
Domain : industrial, chemical
Applications : metering
Other characteristics : compact, rugged, actuated
Flow : 0.5 us gal/h, 2 us gal/h, 5 us gal/h, 9.08 us gal/h (1.89271 l/h)
Pressure : 1,600 psi, 2,500 psi, 3,000 psi
