Standardisation means not only low investment, but as most of the components are identical and interchangeable, spares can be minimized leading to low storage cost and high availability. Performance is not compromised as the pump range uses the well proven ProCam design to achieve long lasting reliable operation, as expected from all our pumps.

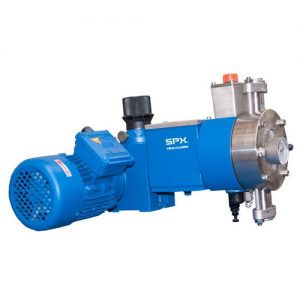

ProCam Smart is an uncompromised, standard, economic, general purpose metering pump with stainless steel liquid end, suitable for handling many liquids, including hazardous fluids.
Advantages:
Hermetically sealed pump design
Diaphragm head with mechanically operated PTFE double-diaphragm
Diaphragm status control by hose nipple
Materials (product wetted parts):
Stainless Steel
Pump connections:
Female thread DIN ISO 228
Pump gear:
Robust cast iron gearbox
Metallic gear components
Stroke adjustment:
Manual
Type of gear:
Integrated worm gear
Drive:
Fixed speed
Standard IEC motors, IP 55
Operating Pressure / Flow rate:
up to 20 bar
up to 500 l/h
Benefits
Hermetically sealed pump design
Diaphragm head with mechanically operated PTFE double-diaphragm
Diaphragm status control by hose nipple
Fluid : for chemicals
Operation : electric
Technology : diaphragm
Domain : industrial
Applications : handling, metering
Material : stainless steel, cast iron, PTFE
Fluid specification : for hazardous fluids
Flow : 500 l/h (132.08603 us gal/h)
Pressure : 20 bar (290.075 psi)
