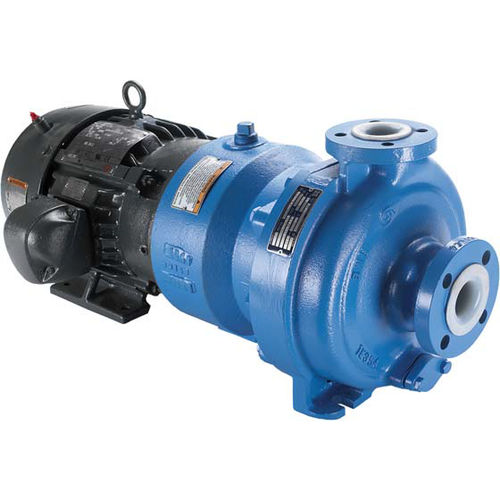

Chemical pump3298 series

Product Description
Ideal for Moderate to Severe Corrosives!
The 3298 can handle the tough chemical services. As a sealless design, it’s an effective alternative to pumps with mechanical seal problems. Meets strictest EPA regulations.

Specifications
Capacities to 1200 GPM (270 m3/h)
Heads to 530 feet (162 m)
Temperatures to 250° F (120° C)
Pressures to 225 PSIG (1551 kPa)
Design Features
Extended Pump Life
ETFE Construction
Sealless Design
Stationary Silicon Carbide Shaft
Optional Silicon Carbide Dryguard™ Bearings
Optimum Performance
Non-slip Synchronous Drive
Efficiency Equivalent to Sealed ANSI Pumps, 30% Higher than Metal Sealless Pumps
Ease of Maintenance/Installation
Minimum Parts
No Pump/Motor Alignment Required with Close-Coupled Design
ANSI Dimensional
Optional Frame Mounted Design
No Mechanical Seal
Safety
Drive and Driven Magnet Assembly Safety Clearances (Frame-Mounted Design)
Adapter and Casing Drain Connections
Zero Emissions

Fluid : for chemicals, oil
Operation : with electric motor, magnetic-drive
Technology : centrifugal
Domain : chemical
Applications : chemical process
Other characteristics : close-coupled, seal-less, seal
Flow : 270 m³/h (9,534.96001 ft³/h)
Pressure : 1,551,000 Pa (224.954 psi)
Head : 162 m (531’05”)
