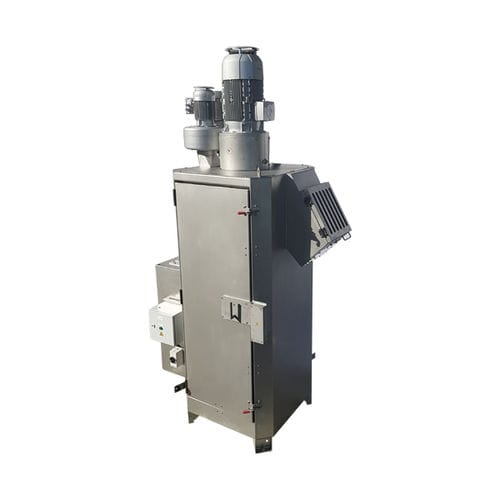

CYCLO® is energy-efficient pellet drying with minimal space required. The dryers are suitable for use with both PEARLO® underwater pelletizing and M-USG and P-USG underwater strand pelletizing systems. Well thought-out and highly accessible components, such as the core rotor device, serve to provide excellent operating characteristics and efficient servicing.
Basic principle of pellet drying
The drying operation as part of the pelletizing process consists of three individual steps:
1. – Pre-dewatering: Up to 95 % of the process water is removed by gravitational force.
2. – Primary drying: Bigger water drops adhering to the pellets are largely removed through airflow or mechanical movement.
3. – Final drying: The residual heat of the pellets is used to evaporate the remaining surface moisture.
CYCLO® featuring:
• – Field proven dryer designs ¡ Solid rotor combined with segmented bottom section
• – Field proven EM (Easy Mounting) screens
• – Tangential in- and outlet
• – Low noise insulation
• – Integrated dewatering
• – Stand still monitoring – optional
• – Keyless mechanical interlocking system
• – Two large dryer doors
• – Filter integrated into insulated resin outlet
• – Motor on top arrangement (direct drive)
• – Interlocked hinged resin outlet filter for cleaning access
• – Internal air ductwork
Advantages
• – Minimal residual moisture easily achieved
• – Compact design providing optimized access for cleaning and maintenance
• – Integrated pre-dewatering chute provided as standard equipment
• – Easy exchange of all parts subject to wear, e.g. rotor blades
• – Special design for micropellets
• – Low noise emissions
• – Low energy consumption
• – Reliable for various production processes
Technology : centrifugal
Applications : for plastic pellets
Other characteristics : compact
