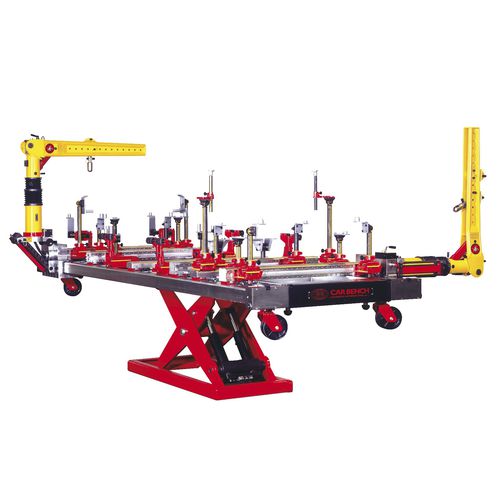

The panel beater has always had the need to have a puling system that allows him to make pulls in the desired direction and oriented in space. The ‘OCTOPUS’ pulling system satisfies this need by allowing you to repair any type of accident on all points of the car. In the front, in the rear, on the sides, under the floor, inside the passenger compartment or in the engine compartment; it is in fact possible to direct the pull in the direction of the resultant of the forces that caused the deformation during the crash and in the opposite direction.
The ‘OCTOPUS’ bench allows repairs in ideal conditions, without alteration of the geometric and mechanical characteristics of the body due to unsuitable pulls (with obligatory direction) and reduces intervention times.
The system consists of two pull posts, each of which runs on a beam placed laterally on the bench.
The beams can be removed and brought closer to the bench with a pneumatic gun. Each arm, equipped with fully mechanized movements, is able to assume, thanks to the five degrees of freedom, any pulling direction. The system can be locked in the position and with the desired angle, the desired pull can be performed when the locking is completed.
The entire pull post can perform a 360 ° primary rotation at the base. Moreover with the same post it is possible to obtain an opening up to 90 ° (opening speed 0.75 rounds/minute). Finally, at the locking point, the pull post can perform a further secondary rotation of another 360 °.
Maximum load : 3 ton
Other characteristics : with pulling arm, with lift
Pulling strength : 10 ton
Lifting height : Min.:
