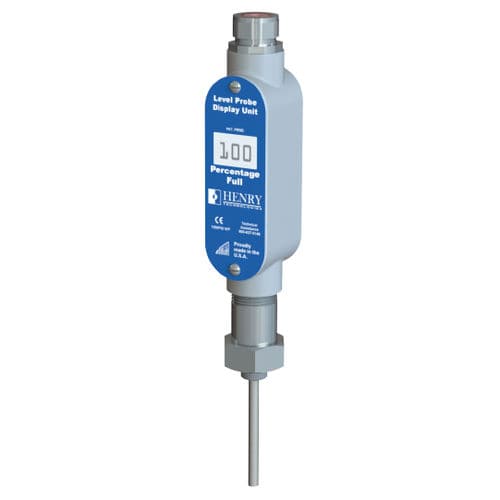

The function of a Liquid Level Probe is to measure and display refrigerant or oil level in a vessel.

Applications
Henry Technologies’ Liquid Level Probes are designed for use in a variety of refrigeration ana air conditioning applications. The Liquid Level Probes use a 3/4″ MPT or a 1-1/4’-12 Rotaiock fitting to mount to Liquid Receivers or Oil Reservoirs and provide a 0-5V output offluid level. Probes are custom ordered based on specific application and desired features.
Heniv Technologies’ Liquid Level Probes are suitable for use with HFC, HCFC and C02 refrigerants, as well as their associated oils. Each Probe should be ordered based on specific application to ensure proper calibration.

Main Features
•3/4″ MPT or 1-1/4’-12 Rotaiock connection •Continuous accurate measurement •DIN cable connector •6ft, 3-wire 20 AWG cable •Options Include: oLCD Display
oStand tube (essential for horizontal vessels or vertical vessels with internal elements such as dip tubes or heater coils) oRemote probe head oO-5V or 1-6V output o12ft cable

Technology : capacitive
Medium : for liquids, for oil
Applications : for industrial refrigeration
Other characteristics : with digital display
Process pressure : 90 bar (1,305.34 psi)
Process temperature : Min.:
