Gyro-compensated Inclination Sensor in MEMS Technology with 1 or 2 axes with High resolution

Description

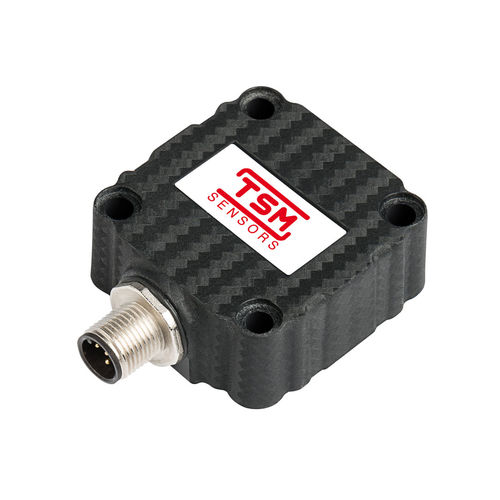

TLP300 is available with one or two measurement axes. The inclinometer working principle is based on a micro machined silicon capacitive transductor (developed with MEMS technology).

Utilizing gyro-compensated MEMS technology, the sensor position signal is instantaneous with no delays and has a static excellent linearity.

TLP300 is suited for applications (cranes, aerial platforms, drilling machines and excavators) in harsh environments which are exposed to motion, shock and vibration, especially for mobile machines.
CHARACTERISTICSMEMS technologyHigh protection level IP67 and wide temperature range from -40°C … +85°CStable accuracy over whole temperature rangeResolution up to 0,01°Single axis 0° to 360°Double axes ± 1° to ± 60°Optional redundant outputADVANTAGESInstantaneous Gyro-compensated measureExcellent accuracyReliability and long service life for outdoor applicationsVery compact dimensionsHigh shock/vibration resistance
TECHNICAL SPECIFICATIONMeasuring range±1° to ±60° for horizontal version0° to 360° for vertical versionAccuracy (+25 °C)< ±0,3° Resolution0.01°Temperature coefficient0,008 °/°CProtectionIP67Temperature range-40°C ... +85°C [-40°F ...+185°F]Material housingPA6 + GF30%Initialing time<0,3 s after power onWeightapprox. 100 g [3.53 oz]Shock resistanceacc. to EN 60068-2-27 30 G, 11 msVibration resistanceacc. to EN 60068-2-6 10 ... 500 Hz Number of axes : 1-axis, 2-axis Output : CANopen Technology : MEMS Other characteristics : high-precision, high-resolution, IP67 Inclination : Min.: Resolution : 0.01 °
