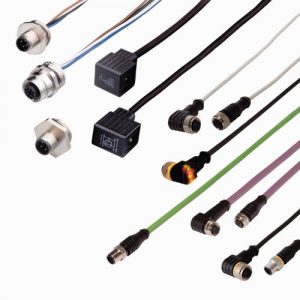

CAN Bus cable harness

Features:
– Factory build cable assembly for light industrial environment
– Easy wiring without tools
– Cables and connectors complies to ISO 11898 and CiA® specification CiA 303-1

Description:

The cables are designed for use in CAN systems. They are suitable for nearly all esd’s CAN devices.

The CAN-GND signal is connected to cable shield to protect the differential signal against electromagnetic influences.
Tappings at the main bus cable can be realized with T-connectors in order to insert CAN nodes. The recommended length for stub lines is 0.3 m.
Both ends of the CAN net have to be terminated externally via 120 Ω termination.

esd offers CAN-Repeater with two or three ports and electrical isolation as an option to fit all needs of installation. The I-Repeater can be used to improve the user capacity of the CAN, or to add an electrical isolation (only with ‘-Opto’ design). The Y-Repeater branches from one to two CAN lines.

Cable type : CAN Bus
