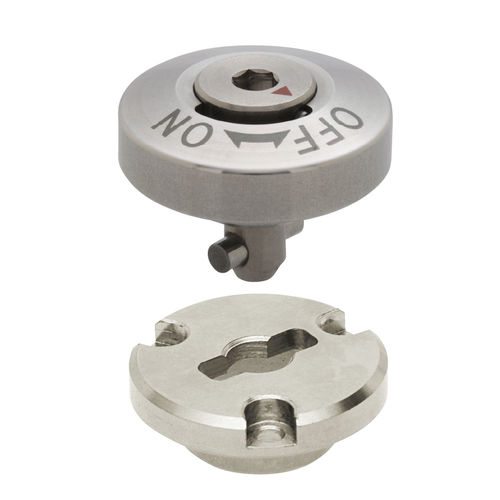

QUARTER-TURN CLAMPS WITH HEX SOCKET
For quick changeover with no tools & frequent changeover of machinery or fixtures.
Reduces your setup time in packaging/printing/food processing machines or assembly/checking fixtures.
“Hex socket is ideal for miss unclamping by unintentional knob operation. ”
Secure clamping by cam locking with just a quarter-turn of knob!
ON/OFF indicator makes clamping/unclamping conditions visible.
– Technical Information –
Clamping force: 60 / 90N
Shear strength: 1800 / 3200N
Tensile strength: 1200 / 2600N
Heatrestant Temperature: 180 degrees Celsius
– Materials –
Body: SUS303 stainless steel
Knob: SCS13 stainless steel (equivalent to SUS304)
Shank: S45C steel (electroless nickel plated)
Spring: SWOSC-V steel
Type : cam, lock, compression, quarter-turn
Material : steel, stainless steel
Other characteristics : compact, safety, miniature
Applications : for heavy loads, for automotive applications, for medical applications
