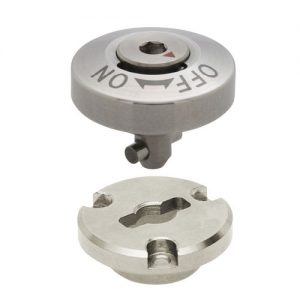

Cam latchQCTH

QUARTER-TURN CLAMPS WITH LOW PROFILE KNOB
For quick changeover with no tools & frequent changeover of machinery or fixtures.
Reduces your setup time in packaging/printing/food processing machines or assembly/checking fixtures.

“Low profile knob is ideal for space-saving.”
Secure clamping by cam locking with just a quarter-turn of knob!
ON/OFF indicator makes clamping/unclamping conditions visible.

– Technical Information –
Clamping force: 60 / 90N
Shear strength: 1800 / 3200N
Tensile strength: 1200 / 2600N
Heatrestant Temperature: 180 degrees Celsius

– Materials –
Body: SUS303 stainless steel
Knob: SCS13 stainless steel (equivalent to SUS304)
Shank: S45C steel (electroless nickel plated)
Spring: SWOSC-V steel

Type : cam, lock, quarter-turn, lever-operated
Material : steel, nickel, stainless steel
Other characteristics : compact
Applications : for heavy loads, for automotive applications, for medical applications
