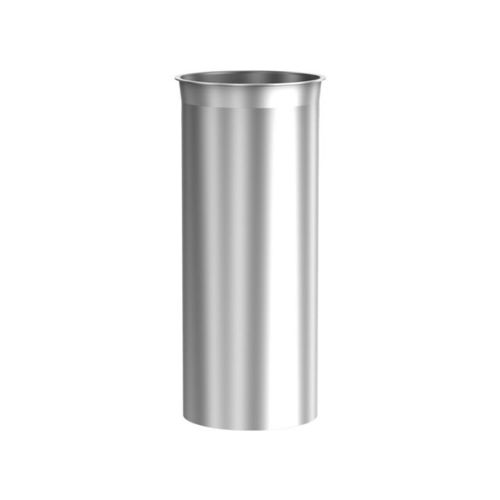

PUSH-IN PIPES
The easy solution for creating special lengths on site within a modular system. Push-in pipes are available in different lengths and are fitted with a ring seal. They are inserted into a welded pipe as far as required and then fixed in place with a pull-ring. The push-in pipe should be inserted at least 50 mm into the straight pipe, and the minimum length that is bridged is 45 mm. The easiest way of creating a special length – without sawing, welding or lip flanging!
This connection is not shock explosion proof. Admissible over-pressure 100 mbar (1000 mm WG, 10,000 Pa).
Push-in pipes are not telescopic pipes that can be adjusted during operation. When push-in pipes are installed horizontally, support must be provided directly on the pipe before or the pipe after the push-in pipe. In vertical pipework, the pipe under the push-in pipe must be supported. Use in pipework conveying foodstuffs is not recommended. Please also read and take into account our push-in pipe installation instructions.
Push-in pipes in 1 to 3 mm wall thickness
For combining with:
• QUICK CONNECT pull-ring or pull-ring without sealant for 1 and 2 mm pipework (page 32)
• Ring seal (page 49)
Use : for bulk materials
Material : stainless steel, galvanized steel
Other characteristics : welded, modular, quick-connect
Inner diameter : Min.:
Outer diameter : Min.:
