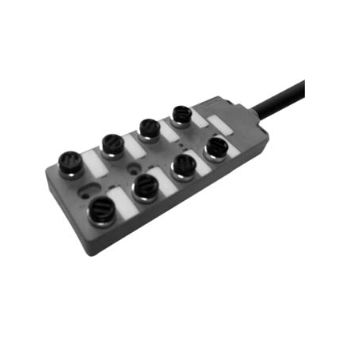

Built-in boxPNP

Description
• – Distribution Boxes,8 port Cable Version.
• – 5 pôles 4 wires.with built-in LED’s(PNP).
• – Earth connection,with dust covers and attachable molds.
• – Standard length is 5 meter cable, other cable length or cable spécifications on requests.
Technical Data
1. – Application Class:
2. – Materials:
Housing:
Contact:
Réceptacle Shell: Insert:
O-Ring:
3. – Electrical Data:
Contact Résistance: Current Rating:
Working Voltage: Insulation Résistance:
-15cC to +90:C
Nylon 6/6 Optional-blue
Brass.gold over nickel plating Brass.nickel plated PUR(Polyurethane),black Viton
s5mQ
4 Amps per outlet 12 Amp max per box 10-30VDC >10SQ
4. – Mechanical Data:
Insertion Force (contact):
Withdrawal Force (contact):
Protection:
Shock:
Vibration:
*2.0N (.45LBS)
s0.5N (.11LBS) IP68,NEMA 6P(only in fully locked position) IEC-68-2-27 IEC-63-2-6
5. CE Conformity with Standards:
EN50082-1, EN50082-2 and IEC60947-5-2

Construction : built-in
Configuration : rectangular
Application : distribution, data
Protection level : NEMA
Other characteristics : protection
Width : 54 cm (21 in)
Height : 152 cm (60 in)
Depth : 18 cm (7 in)
