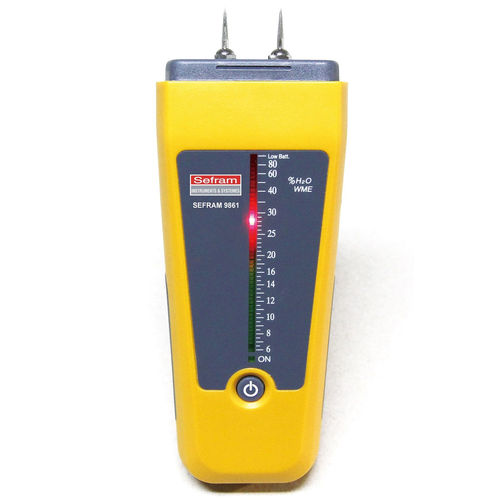

Moisture meter, LED display 5.5% to 100% WME
Model 9861

– Multi-colors LED bargraph
– Measuring range: 5.5% to 100% WME
– Bragraph with 48 LED
– Simple and easy to use
– Sturdy and durable moisture probe
– Supplied with a carrying pouch and accessories
– Analog output for recording data

Specifications
Moister Meter
SEFRAM 9861
SSeeffrraamm
Measure of WME (Wood Moisture Equivalent)
Ranges 5,5% à 100%
Green display 5,5% à 16%
Yellow display 17% à 21%
Red display > 22%
Accuracy ±1% (at room temperature)
Analog output
Range 10mV / %WME
Max. amplitude : 1V
Minimum load 250 ohms (min.)
Output connector jack 3,5mm
General Specifications
Display bargraph with 48 LED,
3 colors according to measured value
Auto power-off yes
Operating temperature range -20°C to 55°C (RH<70%) Storage temperature range -20°C to 60°C (without battery and RH<80%) Power supply 1 single 9V battery - 6F22 Autonomy 150h typical (with alkaline batteries) Measured material : building materials Technology : pin Other characteristics : hand-held, with LED display
