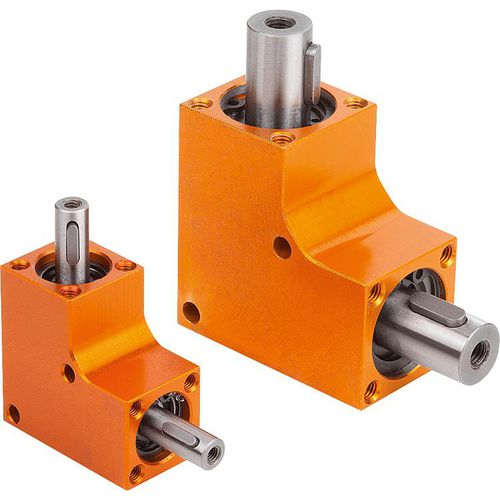

Bevel gear reducer22712

Bevel gears

Material:
Housing aluminium.
Bevel gears steel.

Version:
Housing anodized.
Bevel gears surface hardened.
Ball bearing with rubber sealing washer RS.

Note:
Universally applicable and maintenance-free bevel gear in seven different sizes with the ratio 1:1. The housing is sealed to prevent grease leakage and keep dust out. Can be mounted in any position. The rotation direction is arbitrary.

– smooth power transmission
– simple screw fastening
– quiet

Technical data:
Duty cycle: 20% (at 5 min.)
Service life: ca. 1000 hours (at full load, speed 500 rpm and duty cycle 20%)

Temperature range:
-20 °C to +60 °C.

Note:
FR permissible radial force at FA=0
FA permissible axial force at FR=0

Type : bevel
Shaft orientation : perpendicular
Torque : 1 – 5 Nm, 5 – 10 Nm, 10 – 20 Nm, 20 – 50 Nm
Performance : high-precision, low-noise
Applications : transmission
Other characteristics : industrial, aluminum, universal
Rotational speed : Min.:
