Bench-top portable grinderTEG1

PORTABLE TUNGSTEN ELECTRODE GRINDER

GRINDS ELECTRODES FROM 1.6 TO 5.0MM

0 to 60 degree angle adjustment range. CE certificate

Specification

•Voltage: AC220V
•Frequency: 50-60HZ
•Power: 60W
•Disc Diameter: 90mm
•Disc rotating speed: 5000rpm
•Minimum grinding length: 60mm
•Tungsten diameter: 1.6 – 5.0mm
•Grinding angle range: 0 – 60 degrees
•Dimension: 230x170x200mm (W x Lx H) Weight: 4KG

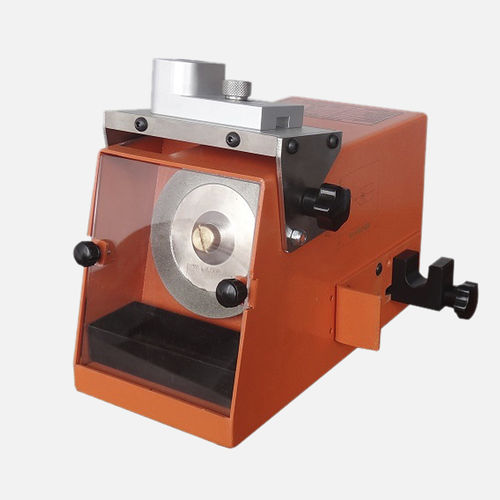

The GBC MasterPoint TEG1 is a robust, easy to use tungsten electrode grinder.
It sharpens tungsten electrodes from 1.6mm to 5.0mm diameter at any angle
Bench mounted yet, weighing only 4 kg, lightweight enough to be easily
from 0 to 60 degrees.
Dust collection tray for easy waste disposal.
transported.

Configuration : bench-top
Operation : electric
Other characteristics : angle, electrode
Power : 60 W (0.1 hp)
Rotational speed : 5,000 rpm (31,416 rad.min-1)
