Fitting of H500 – 3 Piece Ball Valve

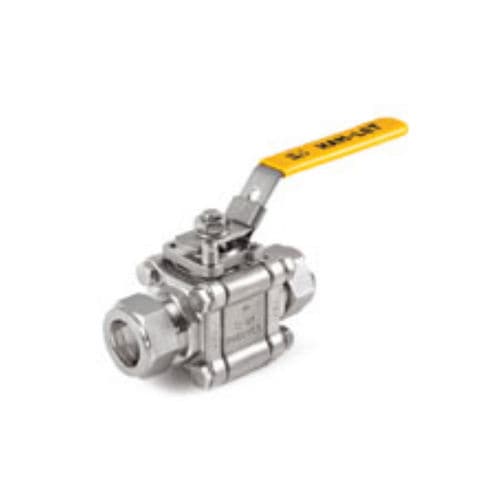

H500 – 3 Piece Ball Valve
Products Found: 20
For Actuated Valves
■ – K spécial deaning is required. LF/OC will be added in the end and will refer to the Valve only.
For example: H – 500- SS – L- 3/4 – T – A2 – OC
■ – For ordenng information of actuators for high température please refer to HAM-LET Pneumatic Actuator Catalog
■ – For double mounting actuators. please contact your local représentative
■ – For Actuators Accessones (Limit Swrtch. Solenoid Valve), please refer to HAM-LET Pneumatic Actuator Catalog
■ – For Stamless Steel Actuator or Electric Actuator please contact your local représentative
The sélection of Valve-Actuator assemblies provided herein is based on:
■ – Valve maximum allowable working pressure
■ – Ambient température (50 to 100°F / 10 to 37°C)
■ – Actuator fits to valve based on operatmg pressure of 6 bar. in accordance with table A. To order H-500 bail valve factory assembled with an actuator. the actuator designator shall be added to the valve part number/descnption per the below table.
Example:
H-500-SS-L-3/4-T with standard Double Actmg Aluminum Actuator H-500-SS-L-3/4-T-A2
To order an actuator and mountmg kit for field assembly:
Double Acting Actuator ordering number: Z-A2 Correspondmg mounting kit: Z-500-MK-3/4 -F03-F04-A2
Lubricant-Free Valves:
For Spring Return Actuator-select one size bigger then offered in the table below.
Example: If the offered actuator in the table is A2C. select A3C
For Double Acting Actuator – please contact your local représentative
Type : ball
Operation : lever, pneumatic, electrically-actuated
Function : control
Body : aluminum
DN : Min.:
