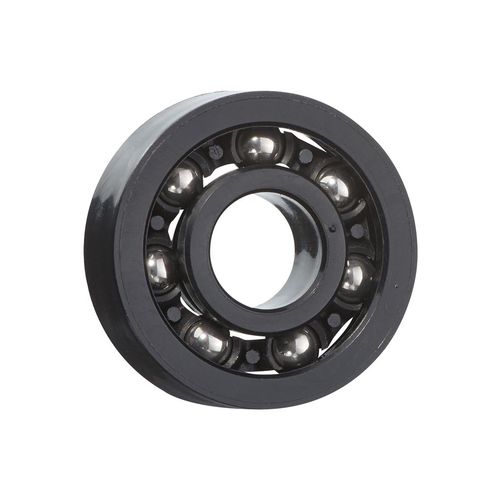

Ball bearingxirodur F182

xiros® radial deep groove ball bearing, xirodur F182, stainless steel balls, cage made of PA, mm

. Conductive (ESD-suitable)
. Lightweight
. Cost-effective
. Lubrication-free and maintenance-free
. Cage material: Polyamide (PA)
. Balls material: Stainless steel
. Rings material: xirodur F182

Dimensions
. Installation size xiros:608
. Ø d1:8.00 mm
. Ø d2:22.00 mm
. b1:7.0 mm
. Tolerance shaft:h6

General properties
Rings material:xirodur F182
Cage material:Polyamide (PA)
Balls material:Stainless steel
Density:1.42 g/cm3
Colour:black
Max. moisture absorption (at 23 °C/73 °F, 50% r.h.):0.2 Wt.-%, test method DIN 53495
Max. water absorption:0.7 Wt.-%
With drill holes:No
Pivoting:No

Rolling element : ball
Configuration : single-row
Inside diameter : 8 mm, 10 mm, 12 mm (0.31 in)
Outside diameter : 22 mm, 26 mm, 28 mm (0.87 in)
Width : 7 mm, 8 mm (0.276 in)
