ANGULAR CONTACT BALL BEARINGS – PRODUCT DESCRIPTION

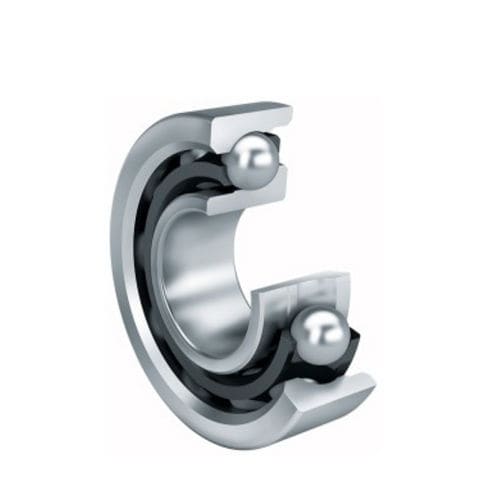

Single-row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is very limited.

X-life
Bearings of X-life quality have an improved raceway geometry and optimized surfaces. This provides a significant increase in the fatigue limit load of the bearings. When calculating the expanded adjusted service life, values up to 50% higher are achieved. In certain applications, this means that a smaller bearing arrangement can be designed.

Various sizes are supplied in the X-life grade. These bearings are indicated in the dimension tables.

Double-row angular contact ball bearings can support axial loads in both directions and high radial loads. They are particularly suitable for bearing arrangements in which rigid axial guidance is required.

X-life – proven to be better
In these bearings, the raceways have optimized roughness and geometrical accuracy. This gives a higher load-carrying capacity and longer service life. X-life is the premium brand that identifies particularly high-performance products under the INA and FAG brands.

They are characterized by a longer rating and operating life – the result of higher dynamic load ratings than those of current standard products. If the load and design envelope are unchanged, X-life bearings have a longer rating life. Longer maintenance intervals are possible.

Rolling element : ball
Configuration : angular-contact, single-row
Material : brass
Other characteristics : high-performance, sealed
Inside diameter : Min.:
Outside diameter : Min.:
Width : Min.:
