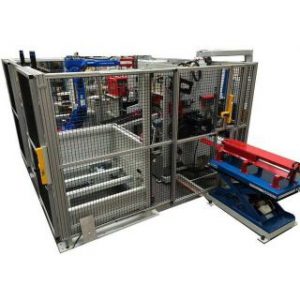

CR TYPE ROLL BENDING AND WELDING AUTOMATIC PRODUCTION LINE

CR TYPE ROLL BENDING AND WELDING AUTOMATIC PRODUCTION LINE

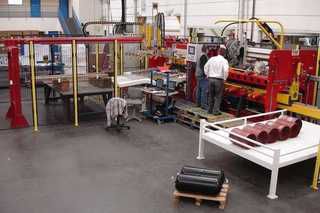

It includes a high rate rolling machine and a Seamexpress welder as well as an automatic sheet picker at the input in order to achieve a fully automatic and autonomous installation. It is well suited to the production of compressed air reservoirs up to large sizes, and any other type of medium run production. Large size parts with square or rectangular cross-section are also very easy to produce with this type of line.

Technical data for our range
• Shell diameter from 1000 mm
• Shell length up to 3 metres
• Sheet thickness between 3/10 and 6 mm according to versions
• Productivity between 80 and 300 parts an hour according to models
• Changeover within 10 minutes
• Discontinuous welding, fixed shell and moving torch
• Possible shell forms: cylindrical, rectangular, oval, triangular, and any other complex form (to be validated according to the radii to be made)
• In addition to our standard range, we examine every request to adapt our machines to the specifications of our customers
• Welding processes: MIG, TIG, Plasma, submerged arc, laser

Type : automatic
