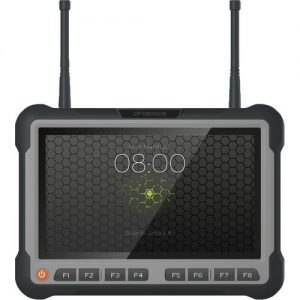

APOLLO 10 Pro is designed as ruggedized in-vehicle tablet, which support Android 9.0 system. With its follow features, now this tablet has been widely used in China Agriculture auto-steering system, also machinery control industry.
10.1 inch High Brightness display
Octa-core powerful CPU, GPU support OpenGLES 3.1
IP65 Sealing level design
Support 250K/500K CANbus (J1939, CANOpen, ISO15765)
9-36V wide voltage input, support ignition detection
Support Ethernet, online together with LTE
System
Octa-core, 1.8 GHz
2G RAM
16G ROM, support 256G TF extension
Android 9.0
Display
10.1″, 1024*600p, 750cd/m2
10 points capacitive touch screen
Communication
2.4GHz/5.8GHz Wifi, IEEE 802.11 a/b/g/n/ac
Support Wifi Shared Hotspot
BT2.1+EDR/3.0/4.1LE/4.2BLE
4G / LTE ( Dual SIM optional)
GNSS (GPS/BDS/GLONASS)
Optional Centi-meter level GNSS OEM board
Optional intertial navigation module
Built-in MIC
Built-in Speaker
Sensors
Built-in G-sensor
I/O interface
RS232*2
RS485*1
CAN*1 (Support J1939, CANopen, ISO15765)
DI*2, DO*2
USB 2.0*1
720p*4 / 1080p*2 AHD Camera
12V DC OUT*2
Enternet*1
Power Management
9-36V DC Input
Ignition Control
Optional external UPS backup battery
Button
Power Key*1, Function Key*2
Connector Type
Standard industry waterproof connector
SMA Female Connector*2 (GPS & 4G)
TNC Female Connector*2 (GPS)
Rugged Feature
IP65
Vibration & shock: MIL-STD-810
Road vehicle standard: ISO16750
Humidity 95%, non-condensing
Operation temperature: -20°C ~+70°C
Storage temperature: -40°C ~+85°C
Mechanical Spec
Dimension(W*H*D): 281*181*42mm
Weight: 1.5KG
Type : Android 9.0
Display size : 10.1″
Processor : ARM Cortex
Memory : 2 GB, 16 GB, 64 GB, 32 GB
Protection level : rugged, waterproof, shock resistant, vibration-resistant, for harsh environments, ESD, IP65, shockproof, MIL-STD-810G
Other characteristics : touch screen, capacitive touch screen, wireless, fanless, sunlight-readable, GPS
Applications : industrial, military, for forklift trucks
