Analog joystickMO 395 H1X

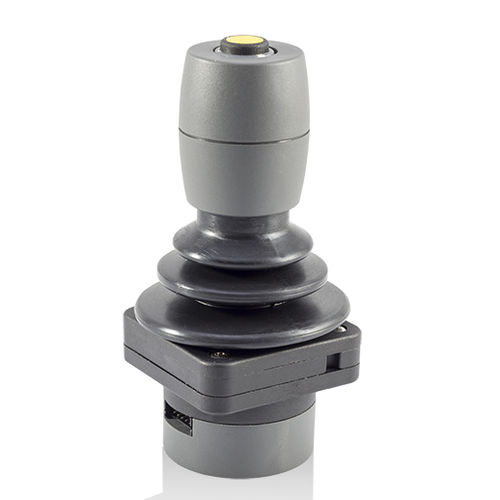

MO 395 H1X Joystick Mini Analog

Technology: Contactless Hall measuring principle. For safety double sensor output per axis, up to 2 axis
Lever: Self centering
Other Specification: 2 axis full square, 2 axis cross, single axis actuation for base
Grip: Up to 3 buttons
Z Axis: ± 45° working angle
Detent: 40° working angle with 3 detent positions

Operating Temp.: -40°C … +85°C

Output:
Programmable analog voltage or PWM output
Analog: 0-5V
PWM: 5V/0-32V(LowSide)/8-32V(HiSide) 100Hz…1kHz

Supply Voltage: 5V or 8-32V DC

Technology : analog, Hall effect, 2-axis, 4-way, 3-axis
Applications : for remote control, for medical applications, for motorized stages, for assistive technology
Other characteristics : with buttons, IP67, IP65, programmable, PWM
