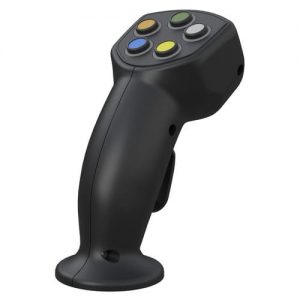

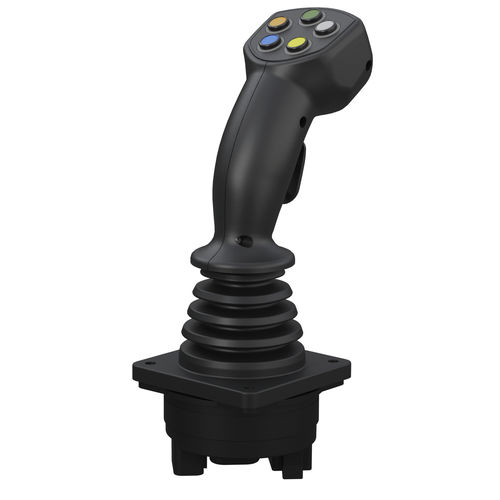

Analog joystickMO 391+387-H1X

MO 391+387-H1X Analog Midi Joystick

Technology: Contactless Hall measuring principle
Output: Double output per axis, full redundant
Output Type: Analog, PWM, Digital options
Output Voltage:

Analog: 0-5V / 0-10V / 4-20mA
PWM: 5V / 0-32V / 8-32V 100…1kHz
Supply Voltage: 5V or 8(12)-32V
Protective Rating: IP67
Lever Op. Angle: ± 20°
Lever: Self centering
Connector: Deutsch 8 pins
Operating Temp.: -40°C … +85°C
Lifetime at full stroke: Up to 5 million

Other Specification:

Two centering spring forces
1000N from 100mm rotation point, 500N from z axis
2 Axis full square, 2 axis cross, single axis actuation
Options: Customized output signal program

Total Controls: Up to 5 push buttons, 2 thumbwheels, 1 presence detection button

Technology : analog, Hall effect, multi-axis, 2-axis
Applications : for utility vehicles
Other characteristics : with buttons, fingertip, IP67, PWM
