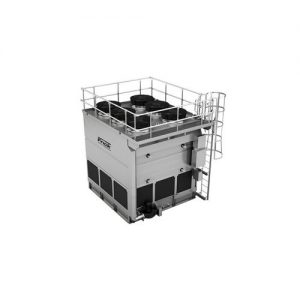

The IDC3 induced draft, axial fan, evaporative condenser is designed to reduce installation time by incorporating new alignment features and a robust construction. The IDC3 has a capacity range of 41 – 2,734 ammonia tons in a single unit, and is an ideal choice for new or replacement projects.

The IDCF incorporates the same robust construction and features found in the IDC3, but adds a patented coil/fill technology to maximize heat rejection. The use of the secondary heat transfer media reduces refrigerant charge, energy consumption and coil scale buildup. The IDCF has capacity range of 45 – 2,810 ammonia tons in a single unit.
FEATURES AND BENEFITS
Capacity: 41 through 2,810 Ammonia Tons in a Single Unit
Operating Weights: 3,800 through 165,700 LBS
Box Sizes: (4′ x 6′) through (24′ x 36′)
Standard Casing Corrosion Protection: G-235 Hot Dipped Galvanized steel panels
Basin Corrosion Protection: G-235 Galvanized steel
Fan Guard Protection: G-235 Hot Dipped Galvanized
Coil Test Pressure: 375 psi
Maximum Working Pressure: 300 psi
Fan Type: Heavy-Duty axial flow with aluminum blades
Nozzle Type: Large Orifice 360 Degree Non-Clog
Capacity Control: Variable Frequency Drives, Independent Fan Operation
Noise Abatement: Sound level at full fan speed, Max 76 (db)
Motor Design, Pump and Fan: Totally Enclosed Motors

Type : ammonia, evaporative
Material : aluminized
