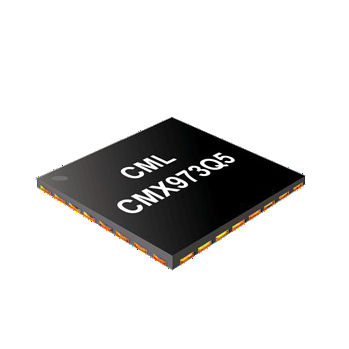

AIS transceiver moduleCMX973

The CMX973 is a high performance quadrature modulator / demodulator featuring a wide operating frequency range and attractive power consumption.

The CMX973 forms the basis of a high-performance RF transceiver system combining a flexible IF/RF quadrature modulator and quadrature demodulator.

Wide signal bandwidth at RF, 0dBm output, low noise and serial bus control delivers maximum flexibility and high-performance, at a low operating power. It is suitable for superheterodyne architectures with IF frequencies of 20MHz to 300MHz and may be used in low IF systems or those converting down to baseband.

The modulator converts directly from baseband to the desired transmit frequency 20MHz to 1GHz and features quadrature phase correction to minimise unwanted spectral components.

The differential inputs are ideal for direct connection to standard modems and interface ICs such as CML’s CMX7163 QAM Data Modem, CMX910 AIS Baseband Signal Processor, CMX981 Digital Radio Baseband Processor and more!

20 – 300MHz IF/RF Demodulator
10MHz Rx and 25MHz Tx I/Q Bandwidth
20 – 1000MHz RF Modulator 0dBm Modulator Output
< 1 degree I/Q Demod Phase Matching < 0.5dB I/Q Demod Gain Matching IF PLL and VCO amp Low Power Mod/Demod 61mA/15mA @ 3.3V Small 32-pin VQFN Package Wireless Data Terminals HF/VHF and UHF Mobile Radio Avionics Radio Systems Telemetry Modems Wireless Microphones Software Defined Radio (SDR) Satellite Terminals Network : RF, AIS, satellite Applications : telemetry Other characteristics : data, high-performance
