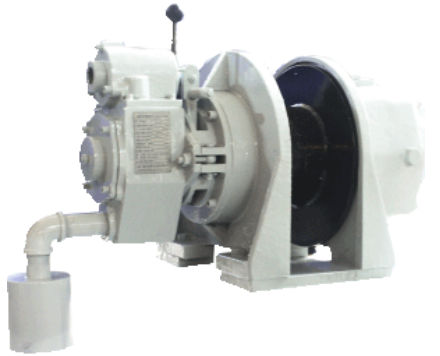

Description
Pressure of compressed air: 0.5-0.7Mpa
Hoisting load: 1000kg
Testing load: 1250kg
Air motor: 6kw*3200rpm
Rope speed :10m/min
Gas volume:8m3/min
Handle force:about 7.8kgf
Drum diameter:280mm
Drum width:300mm
Drum wheel rim diameter:355mm
Rope content:50m
Wire rope diameter:10mm
Outer dimension:710x420x385mm
Operation : air-operated
Application : hoisting
Other characteristics : rotary drum, lever
Capacity : 1,000 kg (2,204.6 lb)
Speed : 10,000 mm/min (6.6 in/s)
