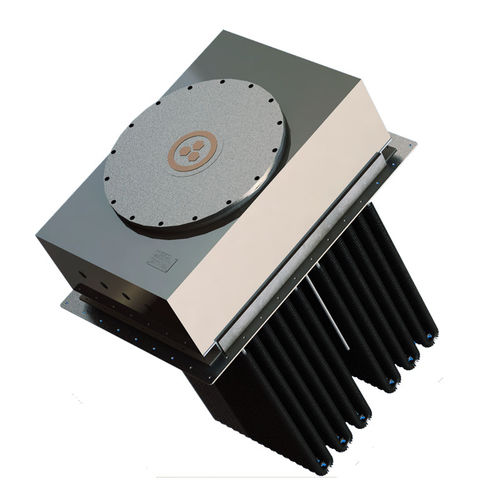

Air heaterSADH

Group: II
Category: 2 G D
Gas Group: IIB or IIC
Temperature Class: T4T1
Ambient Temperature: ‐40°C to +55°C
Ingress Protection: IP66
Rated Voltage: Max 690VAC
Frequency: 50 or 60Hz
Rated Power Output: Up to 35kW

The SADH flameproof air duct heater is designed for duct system heating application in industrial hazardous areas with potentially explosive gas and/or dust. The heat resource is electric resistance wire (solid). The heating medium is air.

Features:

– Flameproof Control Box
– Control box enclosure material: stainless steel or carbon steel
– Heating elements sheath material: stainless steel
– Heating elements fins material: stainless steel
– Overheated protection
– Application: duct system

Treated product : air
Type.. : duct
Other characteristics : convection, stainless steel, explosion-proof, electric
