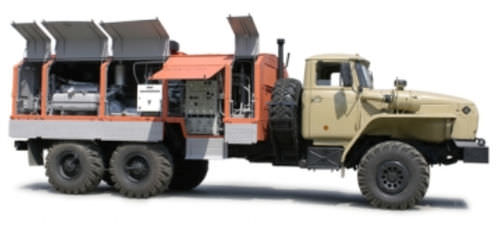

The mobile nitrogen compressor station PKSA-5/101 is intended for production of flame-and explosion proof gas mixture from atmospheric air. The oxygen content in this mixture shall not exceed 10 % and shall be compressed up to pressure of 10 MPa (100 kgf/ cm²) to be used during development, test and repair of oil and gas wells and also for other technological operations in oil and gas industry.
The gas separating block made on the basis of half fiber diaphragms of Air Products (USA), manufactured by UKZ;
Units nave smaller weight and overall dimensions in comparison with similar units;
The equipped heating system provides reliable operation at low ambient temperatures.
Technical specifications – –
Gas to be compressed, inlet gas – air –
outlet gas – Inert gas mixture –
Composition of inert gas mixture – –
(as per volume), % nitrogen (min) – 90 –
oxygen (max) – 10 –
Capacity as per nitrogen, m3/min – 5 –
Initial pressure – atmospheric pressure –
Outlet pressure, MPa (kgf/cm2) – 10 (100) –
Power consumption, kW, max – 135
Applications : air, gas
Type : membrane
Pressure : 10,000,000 Pa (1,450 psi)
Power : Max.:
Flow rate : 5 m³/min (177 ft³/min)
