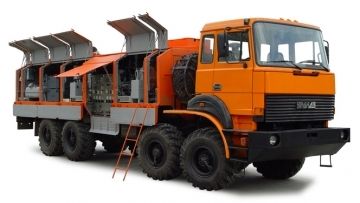

Air compressor stationPKS-16/101

Gas to be compressed, inlet gas – air –
Capacity, m3/min – 16 –
Initial pressure – atmospheric pressure –
Outlet pressure, MPa (kgf/cm2) – 10,1 (101) –
Power consumption, kW, max – 270 –
Overall dimensions, mm – On Ural truck chassis – On KAMAZ truck chassis
Length – 10300 – 9700
Width – 2500 – 2500
Height – 3200 – 3030
Weight, kg – 20500 – 17500

Applications : air
Pressure : 10,100,000 Pa (1,465 psi)
Power : Max.:
Flow rate : 16 m³/min (565 ft³/min)
