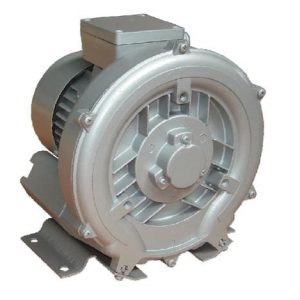

Air blowerUN-RB037/1

Single-Phase
UN-RB037/1
Feature:
Low noise level, High air volume
Low vibration & Contamination free

Application:
Dust collecting plant, Aerator tank, Air Knives
Sewage treatment, Aquaculture, Adsorption
Chip Removal/Parts Blow Off, Liquid Agitation

Frequency – Hz – 50 – 60
HP – HP – 1/2
Power Consumption – kw – 0.37 – 0.45
Rated Voltage – V – 115 / 230
Rated Current – A – 5.4 / 2.7 – 6.0 / 3.0
Maximum Flow – m3/h – 101 – 121
Maximum Vacuum – mbar – -110 – -130
Maximum Pressure – mbar – 110 – 140
Installation Diameter – inch – G1 1/4″
Noise – dB – 54 – 57
Weight – kg – 11

Type : air
Technology : turbine
Number of stages : single-stage
Flow rate : 101 m³/h, 121 m³/h (3,567 ft³/h)
Operating pressure : 110 mbar, 140 mbar (1.595 psi)
Nominal power : 0.37 kW, 0.45 kW (0.5 hp)
