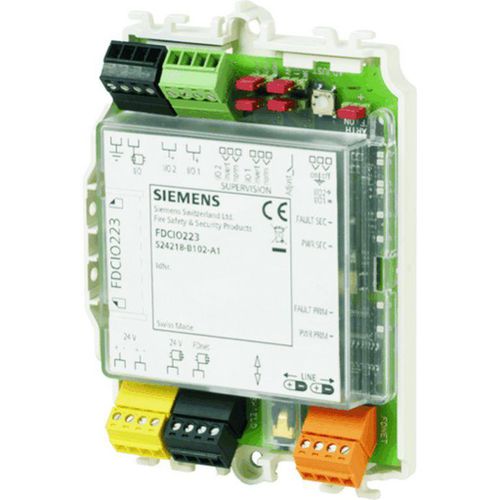

For connection of collective fire detectors (GMT/conventional line, GMT/conventional line with shunt Zener diode barrier (SB3) for explosion-hazard areas). For monitored controls of e.g. smoke dampers, alarm devices, door magnets and extinguishing activation devices (adhere to country-specific instructions). Monitored signal input for status and alarm messages or for acknowledging technical status.
The 2 inputs/outputs can be parameterized autonomously in each case as detector line collective, contact input, control output, control output and input as acknowledgement with selectable monitoring time frame. Status indication by LED.
Transponder incl. 2 Transzorb diode 20 V, 8 resistors and 2 mounting feet for TS35 U-rail.
– Operating temperature : -25…+60 °C
– Standard : CEA GEI I-084, EN 54-13, EN 54-17, EN 54-18
– Power supply : External input voltage DC 18…32 V
– Protection category : IP30 IP65 with aux. housing FDCH221
– Relative humidity : ≤85 % rel.
– Operating voltage : FDnet/C-NET: DC 12…33 V
– EOL resistor : 3.3 kΩ/680 Ω, 2.7 kΩ/560 Ω, 3.3 kΩ
– Storage temperature : -30…+65 °C
– Cable capacity : 0.2…1.5 mm2 (2.5 mm2)
– Control output : DC 24 V ± 5 % / 2x 1 A or 1x 1.5 A
– System compatibility : FDnet -> FS20, AlgoRex, SIGMASYS C-NET -> FS720
– Communication protocol : FDnet/C-NET
– Detector line : Collective GMT Siemens/Cerberus, Synova conventional/SynoLINE300, collective/SynoLINE600 or similar
– Dimensions (W x H x D) : 132 x 90 x 24 mm
– Color : ~RAL 9010 Pure white / transparent matt
– Accessories : TS35_122 U-rail , TS35_288 U-rail , FDCH221 Housing IP65
Options : addressable
