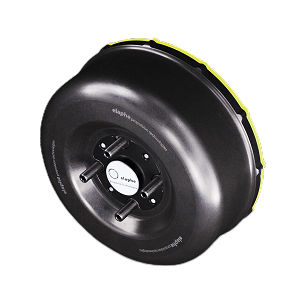

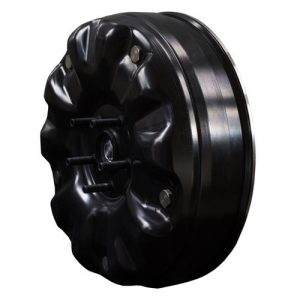

This in-wheel motor is perfect for medium, small or micro EVs in need of additional space and an exciting launch power.
Designed out of the box for light-weight electric and hybrid vehicles, this small and powerful in-wheel motor is intended for light to medium load direct-drive applications and features possible integration with a standard disc or drum brake.
Synchronous AC motor
Option 48V, 100V.
Liquid cooled, direct-drive, compact, for electric vehicles, high-torque, with brake
400Nm peak, 200 Nm rated.
40kW peak, 23 kW rated.
Speed: rated: 1565 rpm@100VDC, up to 1950@125VDC
AC/DC : AC
Type : synchronous
Voltage : 48V, 100 V
Configuration : with brake, compact
Cooling mechanism : liquid-cooled
Applications : for electric vehicles
Other characteristics : direct-drive, high-torque
Torque : Min.:
Power : 11 kW, 23 kW (14.956 hp)
Rotational speed : Min.:
