This in-wheel motor is a perfect fit for a wide range of passenger car classes. It’s compatibility with an off-the-shelf disk or drum brake enables the use of the motor in both 2iWD and 4iWD configurations.

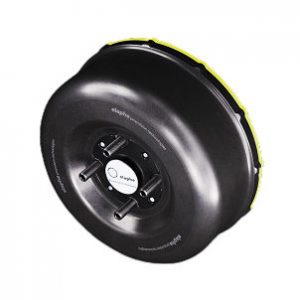

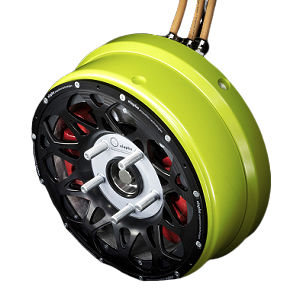

Elaphe™ M700 motor is an extremely compact high-torque in-wheel motor, designed to fit inside a standard 15- or 16-inch rim. With over 700 Nm of peak torque, 400 Nm rated torque, 75 kW of peak power and 50 kW of continuous power, and coupled with Elaphe’s advanced powertrain electronics and HMI, it offers an ideal platform for the next generation of light-weight, efficient and modular electric vehicle powertrain designs.

Synchronous AC motor
Option 300V. Liquid cooled, direct-drive, compact, for electric vehicles, high-torque, with friction brake
>700Nm peak, 400 Nm rated.
>75kW peak, 50 kW rated.
Speed: rated: 1500 rpm@300VDC, up to >2000@425VDC

AC/DC : AC
Type : synchronous
Configuration : modular, compact
Cooling mechanism : liquid-cooled
Applications : for electric vehicles
Other characteristics : direct-drive, high-torque
Torque : Min.:
Power : Min.:
Rotational speed : Min.:
