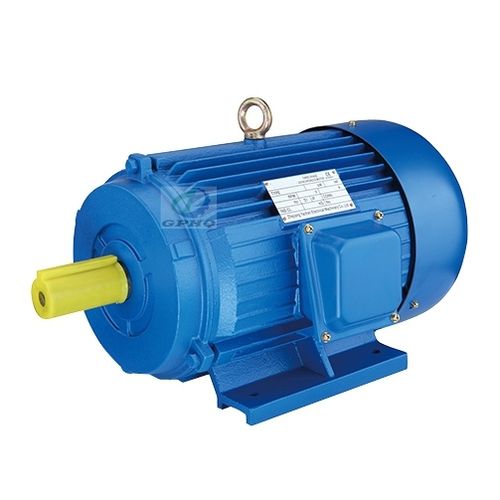

GPHQ Y three phase electric motor :

Y serles motors are totally enclosed fan cooled(TEFC),three-Phase squirel cage induction motors,it is nationaI uniform design in conformity with the reIevant standards of IEC34-1 and JB/T10391.2008 enIoysinte rnatIonaIinte rchanaeabIefeatures.

Y series motors haVe outstandlng performance such as high efficiency,energy.saving,hlgh sta rtlng torque,low noise,slight vibraton,reIiable operatlon and easy maintenance etc.

Y se rles motors are widely used in many places.wne re tnere do not exist combusitble,exploslve or corroslve gas,special requirements,sucn as machine tools,pumps, blowers,transport machinery,mixer,agriculture machinery and food machines,etc.

Power :0.55kw-315kw AC motor
Operating mode :S1
Standard: IEC standards
Frame size :80-355 cast iron frame
Cooling method ;IC411
Frequency : 50hz or 60hz
Insulation class : B ,F ,H grade
Shell protection grade : IP44, IP54,IP55
Voltage : 380v ( also we can do the voltage as your request (220-690V )
Mouting way : B3 (foot type ) ,B5 (Flange type ), B35 ( foot and flange type )

AC/DC : AC
Type : induction
Voltage : 380V, 220V, 690 V
Protection class : IP44, IP54, IP55
Configuration : cast iron
Power : Min.:
