Standard:

3-phase AC motor
Terminal box
Hollow shaft stainless steel
Any transmission
Thermal protection
IP 54

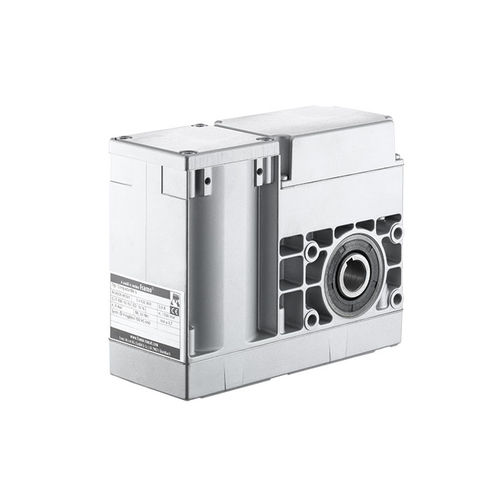

Depending on the gear ratio, the Compacta MR6 shaft-mounted gear motor with the optional integrated control unit version provides an output speed of 2.9 to 100 rpm and a nominal torque up to 60 Nm. The drive motor has a compact design, making it ideal for applications in reversing mode with narrow installation conditions. Standard drive motors are splash-protected (IP54), optionally jet-protected (IP65) and explosion-protected in accordance with ATEX 95. Additional options increase the number of application options substantially.

Furthermore, design-related adjustments are also conceivable for larger quantities so that the drive motor can be adapted individually to certain requirements. You can find projects that have already been implemented here.

The Compacta series covers output speeds of 0.45 to 193 rpm and a torque range of 10 to 1600 Nm with the four sizes MR6, MS12, MR30 and AG160.

Technical description
1. Design
COMPACTA gear motors fromFramo Morat are, as the name implies, extremely compact dimensioned motors
with integrated two, three or four stage gearing to produce the output speed and torque required in an
application. Each COMPACTA is manufactured to the precise specifications ordered by the customer from the
wide range of motor types, gear ratios and optional features shown in this catalogue. COMPACTA gear motors
are used mainly in mechanical handling, automation and special machines where torque requirements may
vary from 10 Nm up to 1600 Nm and output speeds from 193 rpm down to 1 rpm.

Motor type : AC, three-phase
Type : worm
Shaft orientation : right angle
Torque : 10 – 20 Nm, 1 – 5 Nm, 5 – 10 Nm, 20 – 50 Nm
Product applications : industrial
Other characteristics : compact, hollow-shaft, shaft-mounted
