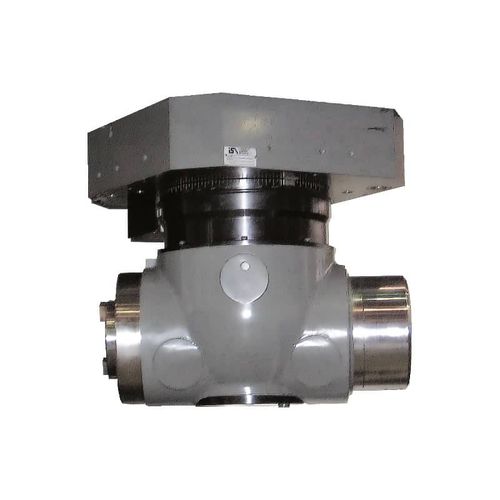

90° angle headTX1 HT 900

Angular heads 900
Head with one index and Direct Drive

Additional information

Tool taper [rif]
BT 50, ISO50

Plate locking force [N]
20000

Power [Kw]
25

Max. speed [rpm]
3000

Max torque on screw [Nm]
900

“C” Axis indexing step with Hirth coupling
2,5°

C Axis Hirth Coupling
Z.144

Weight [Kg]
300

Type : 90°
Applications : for machining units
Power : 25 kW (33.99 hp)
Rotational speed : 3,000 rpm (18,849.56 rad.min-1)
Torque : 900 Nm (663.81 ft.lb)
