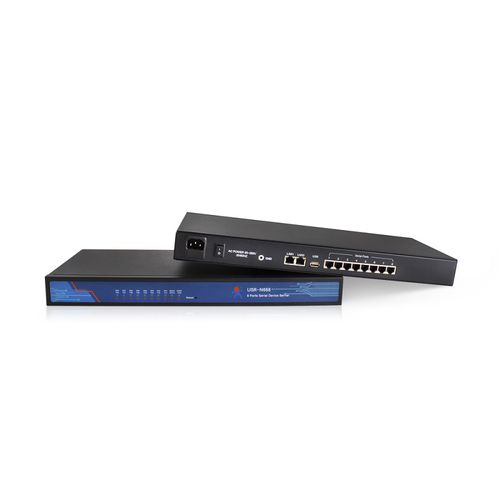

8 ports device serverUSR-N668

8-port RS232/422/485 serial device servers USR-N668.

● 8-port RS-232/422/485 serial device servers
● Power supply accepts wide voltage input range AC 85-265V
● Support TCP server/client, UDP server/client, https client, Virtual COM
● Support Modbus RTU to Modbus TCP
● Support flow control CTS/RTS, XON/XOFF
● Support 8 software selectable RS-232, RS-485/422 RJ45 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface, rack-mount
● Configuration via Web Server page, AT commands, and Windows Utility
Serial port switching among RS232/RS485/RS422

New and industrial design which saves the port space of device, prevent from ash and collision and promote the safety while operating.
Works at RS232 port by default. Please adjust the dial code to corresponding position when you use RS485/422 serial port.
Every serial port can choose mode freely, don’t worry about unified mode for all serial ports.

Item
–

Parameters
–

Value

Hardware
–

Work Voltage
–

AC 85~265 V，50/60Hz

Power Consumption
–

1.6W

Ethernet
–

RJ45、10/100Mbps

Number of Ethernet Port
–

2

Serial Port Format
–

RJ45

Number of Serial Port
–

8 Ports

Baud Rate
–

300-115.2K（bps）

Software
–

Network Protocol
–

IP、TCP/UDP、ARP、ICMP、IPV4、https

IP
–

Static IP、DHCP

DNS
–

Supports user defined

Configuration
–

Software, Webpage, AT command

Transparent transmission
–

TCP Server/TCP Client/UDP Server/UDP Client/ httpsd Client

Class RFC2217
–

Support

Network Cache
–

10Kbyte

Serial port Cache
–

10Kbyte

Average transmission delay
–

>=50ms

Software
–

VCOM、Setup Software, Test program

Packaging mechanism
–

Bus : RS-232, RS-422, RS485, Ethernet, RJ45, Modbus/TCP, Modbus RTU, Modbus
Output bus : Ethernet, RJ45, Modbus
Other characteristics : industrial, 8 ports, rack-mount, IoT
