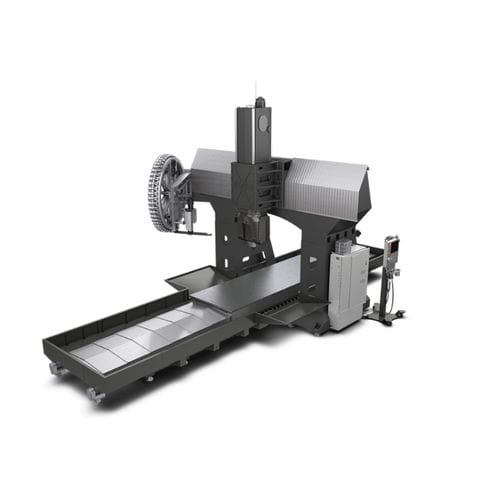

5-axis milling machineHDC-3-5AX

The HDC-3-5AX is a 5-axis double-column mill designed for complex, large-part machining, such as airframe components, layup molds, and composite structures. The machine’s rigid construction provides a very stable cutting platform.

Dual-axis spindle head provides ±245 degrees of C-axis rotation and ±120 degrees of B-axis tilt
HSK-A100 spindle
50+1 side-mount tool changer
Control pendant on moveable stand for easy access
Fully supported X-axis travel
10,000 lb part capacity
Made in the USA

Number of axes : 5-axis
Spindle orientation : vertical
Other characteristics : column type, wide, for composites
X travel : 3,810 mm (150 in)
Y travel : 2,692 mm (106 in)
Z travel : 1,092 mm (43 in)
