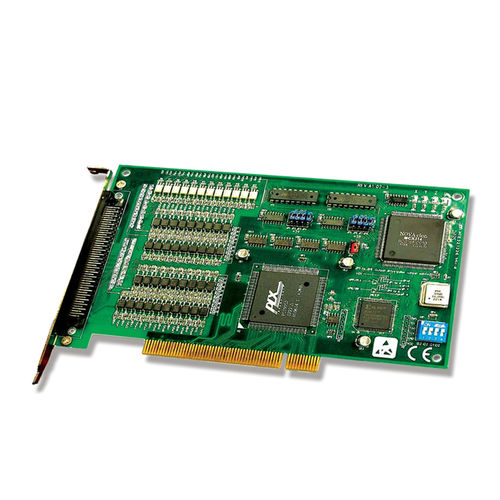

-PCI interface,4 axis independent driver, speed controllable 、Up / down speed driver
-Interpolation : Any 2 axis or 3 axis linear interpolation, any 2 axis circular interpolation , interpolation speed up to 4 MPPS
-Location management, soft-limit, auto return origin, Synchronized actions, External operation signal, servo motor connect, real-time monitor.

Highest Controlling Speed: 4MPPS
The motion control boards control the speed of drive-pulse output from 1PPS to 4MPPS with a stable trapezoidal drive. The velocity accuracy is controlled within ±0.1% when the speed is from 1 to 8 KPPS. Different drive speeds can be set, and altered in a designated drive command.

Simple Drive Commands
Two drive commands, index drive and continuous drive, can be used to perform the drive-pulse output. The speed acceleration / deceleration will happen if the setting drive speed is higher than the initial speed; the speed will be constant if the setting drive speed is lower than the initial speed. The drive-pulse output speed (PPS) is decided by the setting drive speed setting range.

Two 24-bit Position-Managing Counters
Two 24-bit up/down counters are equipped for each axis: the logical position counter for pulse output and the real position counter for pulse feedback. The circuit for pulse feedback, with a high-speed photo coupler, can be connected with an A/B quadrature encoder of line-drive output system.

Number of axes : 4-axis
Motor type : servomotor
Signal type : digital
Technology : PC-based
Other characteristics : PCI, high-speed
